Pressure Points: Decoding Your Water Heater's Regulator and Switch

Why Understanding Your Water Heater's Safety Systems Matters

A water heater pressure switch is a critical safety component that monitors airflow in gas water heaters to prevent dangerous conditions like carbon monoxide buildup. This small but vital part ensures your water heater operates safely by confirming proper ventilation before allowing the burner to ignite.

Quick Reference: Water Heater Pressure Switch Essentials

• Function: Detects adequate airflow from the draft inducer fan before allowing ignition
• Location: Usually mounted on the blower assembly or control panel
• Common failure signs: Water heater won't light, stops mid-cycle, or shows error codes
• Safety role: Prevents gas from flowing without proper ventilation
• Types: Normally Open (NO) or Normally Closed (NC) depending on your model

Your water heater works hard 365 days a year to provide the hot water your family relies on for showers, dishes, and laundry. But when that morning shower turns ice cold, the culprit might be a tiny component most homeowners have never heard of.

As one industry expert noted: "A malfunctioning pressure switch can stall the ignition process, resulting in the water heater not lighting and not heating water." This small safety device plays an outsized role in your comfort and safety.

Understanding how your water heater's pressure switch works - and knowing when it's failing - can save you from costly emergency repairs and keep your family safe. This guide will walk you through everything you need to know about diagnosing, testing, and replacing this essential component.

What is a Water Heater Pressure Switch and Why Does it Matter?

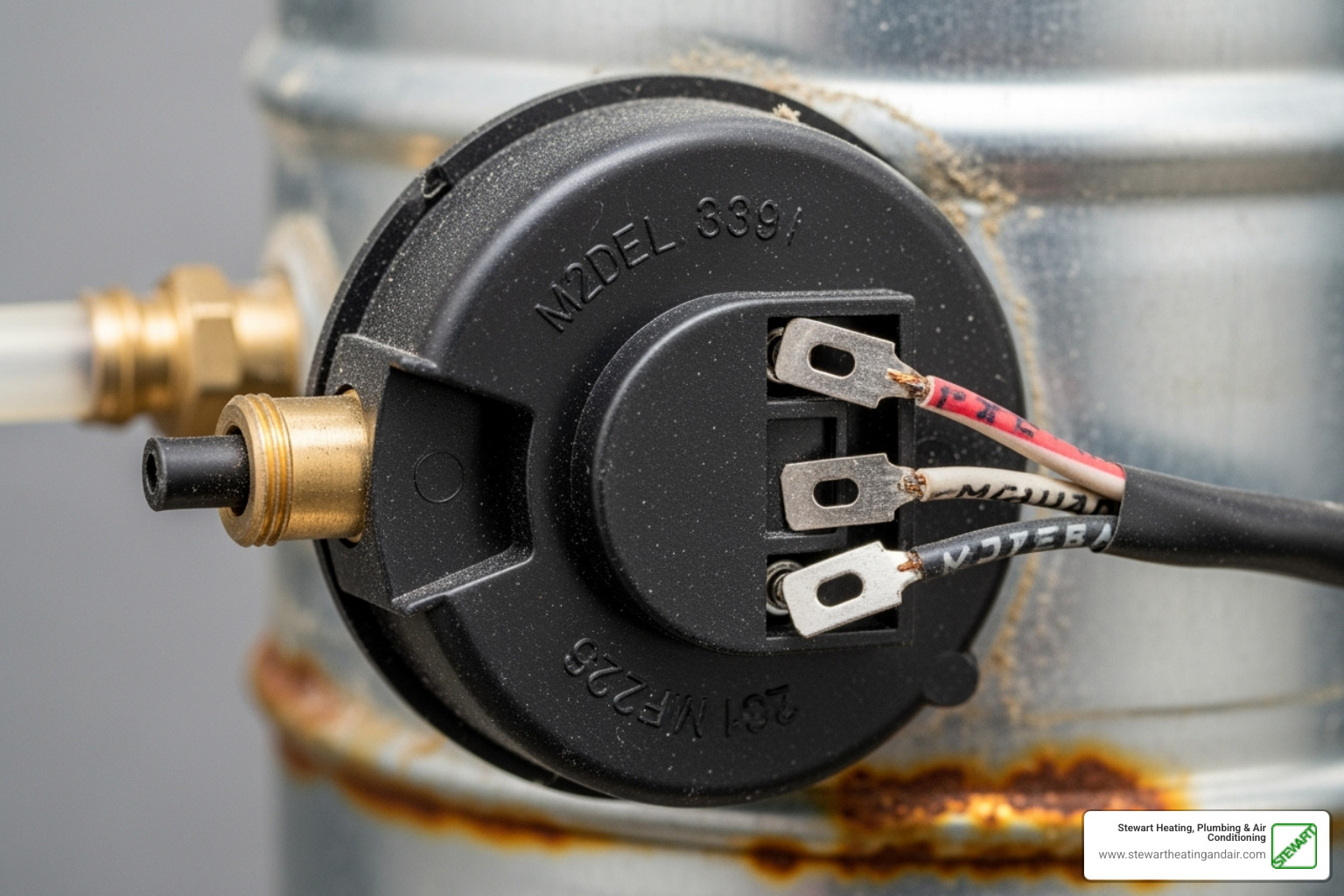

Think of your water heater pressure switch as a careful safety guard. Before your water heater can fire up, this component must confirm that everything is safe to proceed.

Its main job is to ensure that dangerous combustion gases are properly vented out of your home. Without this guardian doing its job, your water heater simply won't work - and that's by design for your safety.

Power vent and direct vent models rely on the pressure switch for their ignition sequence. When your thermostat calls for hot water, the control board first powers the draft inducer fan - a small motor that pulls air through the system and pushes exhaust gases safely outside.

This fan creates negative air pressure within the venting system. A sensitive diaphragm inside the switch detects this pressure change. When the airflow is correct, the diaphragm moves and closes the electrical circuit. Only then does the control board get the "all clear" signal to light the burner.

While it's an effective system, pressure switches can fail over time.

The most common causes of failure include clogged vents that block airflow, a worn diaphragm that can't respond to pressure changes, or a cracked hose connecting the switch to the fan assembly. Any of these issues can leave you with a water heater that won't light.

When you're dealing with persistent water heater problems, professional help makes all the difference. Learn more about our water heater services to see how we can get your hot water flowing again.

Understanding Different Switch Types

Pressure switches come in two main types: Normally Open (NO) and Normally Closed (NC).

Normally Open (NO) switches are the most common in modern water heaters. The electrical circuit is open by default and only closes when the draft inducer fan creates enough pressure. This design is inherently safer, as a fan or venting failure leaves the switch in the "off" position.

Normally Closed (NC) switches work in reverse, starting with a closed circuit that opens when pressure is applied. They are less common in water heaters but may be found in other heating equipment.

The application differences are critical. Your water heater's control board is programmed for a specific switch type, and using the wrong one will prevent it from working correctly.

This highlights the importance of using OEM parts. Original Equipment Manufacturer parts are designed for your specific water heater model. While generic parts might cost less, they may not have the exact specifications your system needs. For safety components like pressure switches, it's worth investing in the part designed to work perfectly with your unit.

Getting the right part the first time ensures your repair will be reliable and last longer.

Diagnosing a Faulty Water Heater Pressure Switch

It's frustrating when you turn on the hot water tap and only get ice-cold water. A faulty water heater pressure switch might be the culprit, and it's often an easier fix than you'd think.

Common symptoms that point to a failing pressure switch:

• Water heater won't ignite - the most common sign.
• Ignition cycle stops prematurely - it tries to start but gives up quickly.
• Blinking error codes - the control panel will often display codes pointing to a pressure switch issue.

When the water heater pressure switch fails, the water heater won't ignite because the switch isn't sending the "all clear" signal for gas flow. You might hear the draft inducer fan turn on, but then everything shuts down before the burner can light.

Many modern water heaters display blinking error codes on the control panel. Codes like "E3," "E4," or "E5" often point directly to pressure switch problems.

Before testing components, try these simple troubleshooting steps:

First, check for vent blockages. Inspect your water heater's exhaust vent and air intake for obstructions like leaves or a bird's nest. Clearing these can sometimes solve the problem, as the pressure switch requires proper airflow to function.

Next, listen for the inducer fan when the heater tries to start. A distinct whirring sound is normal. If it's silent or sounds weak, the fan itself might be the issue, not the switch.

Finally, inspect the connecting hose for damage. Look at the small, flexible hose between the pressure switch and the fan. If it's cracked, kinked, or disconnected, it can trick the switch into thinking there's no airflow. Reconnecting or replacing this hose might be all that's needed.

If these preliminary checks don't solve the problem, it's time for more detailed testing. If you'd rather leave it to the professionals, we understand. Learn more about our water heater repair services.

How to Test and Replace Your Water Heater Pressure Switch

This guide will walk you through testing and replacing your water heater pressure switch safely and effectively. We'll take it step by step so you can tackle this repair with confidence.

However, you will be working with both electricity and natural gas, which means safety is absolutely critical. If at any point you feel uncomfortable or unsure, there's no shame in calling a professional. The smartest DIY move is knowing when to step back and let an expert handle it.

Essential Safety Precautions

Before touching your water heater, let's cover safety. Skipping these steps can lead to dangerous situations.

Safety truly comes first when dealing with electricity and natural gas. These are serious hazards that can cause severe injury or death if mishandled.

Turning off electrical power is your first move. Go to your home's electrical panel, find the breaker for your water heater, and flip it to the "OFF" position. Double-check that the power is off by confirming the control panel lights are dark.

Next, shutting off the gas supply valve. Find the gas line leading to your water heater; it should have a valve with a yellow or red handle. Turn the handle a quarter turn so it's perpendicular to the pipe to shut off the gas flow.

Now, gather your required tools. You'll need a multimeter (digital is easiest) that can measure ohms and continuity, Phillips and flathead screwdrivers, and pliers. If you need a replacement, ensure you have the correct OEM water heater pressure switch for your model.

Testing the Water Heater Pressure Switch with a Multimeter

Testing your water heater pressure switch with a multimeter is straightforward once you know what to look for. It helps you understand what the component is doing.

Locating the switch is usually easy. It's typically in the upper right corner of the water heater, near the draft inducer fan assembly. It's a small, round component with two wires and a small hose attached.

With power and gas OFF, disconnect the wires. Carefully pull the two electrical wires from the switch terminals. It's a good idea to take a photo first to remember which wire goes where.

Set your multimeter to Ohms/Continuity. Turn the dial to the lowest ohms setting (Ω) or the continuity setting, which usually beeps for a complete circuit.

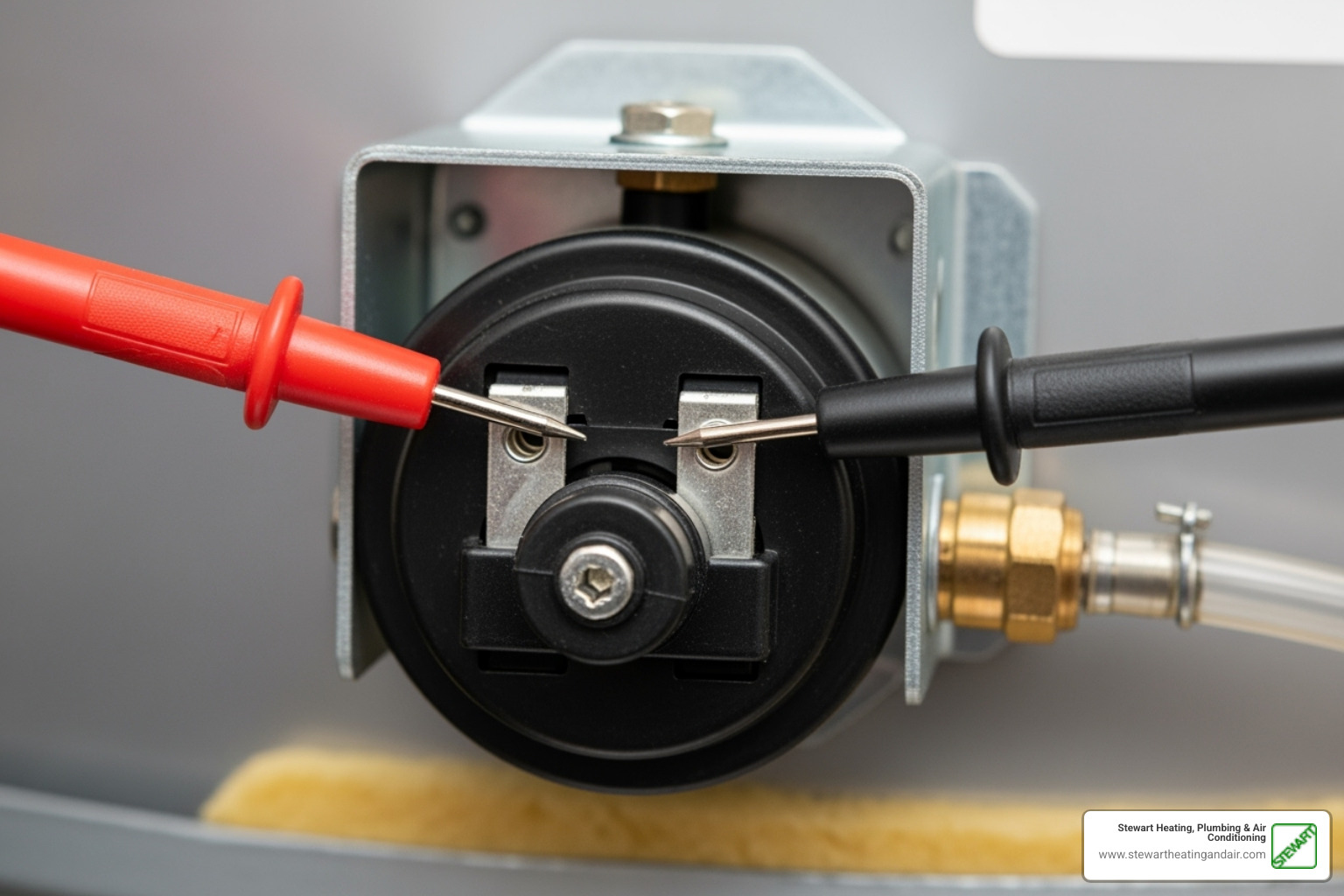

Now, perform the initial test with power off. Touch your multimeter probes to the two terminals on the switch.

• For a Normally Open (NO) switch (most common), your multimeter should read "OL" (Open Line) or "1," indicating no continuity.
• For a Normally Closed (NC) switch, you should get a reading near zero ohms or a beep, indicating continuity.

The critical part is testing while the inducer fan runs to see if the switch works under pressure.

Reconnect the wires, restore electrical power (keep the gas OFF), and turn up the thermostat to call for heat. The draft inducer fan should start.

While the fan is running, carefully touch your multimeter leads to the switch terminals again. Be cautious, as the power is on.

Interpreting your multimeter readings will confirm the issue. For a working NO switch, the multimeter should now show a reading near zero ohms or beep. This means the switch closed correctly.

If the display still shows "OL" or "1" while the fan runs, the pressure switch has failed and needs to be replaced.

Want to see this process in action? See a video demonstration that walks through the testing process step by step.

A Step-by-Step Guide to Replacing the Water Heater Pressure Switch

If your test confirmed a faulty switch, it's time for a replacement. This is a manageable repair for many homeowners.

Sourcing the correct OEM part is crucial. Safety components are not the place to cut corners. Each switch is engineered for specific models, and similar-looking parts can have critical functional differences.

Use your model and serial numbers from the data plate on your water heater to order the exact OEM part from a reputable supplier.

For the removal steps (with power and gas OFF), carefully disconnect the two electrical wires and the small hose from the old switch. Most switches are held by one or two screws or may twist to open up. Remove the screws or twist the switch counterclockwise to free it.

Installation steps are the reverse of removal. Mount the new water heater pressure switch in the same orientation. Secure it with the screws or twist it into place. Reconnect the hose snugly, ensuring it isn't kinked. Then, reconnect the electrical wires to the proper terminals.

Perform final checks. Double-check all connections: wires secure, hose attached, and mounting screws tight.

Restoring power and gas must be done in the correct order. First, slowly turn the gas supply valve back ON. Then, flip the circuit breaker to restore electrical power.

Set your thermostat to call for heat. You should hear the fan start, followed by the burner igniting. Confirming the repair means watching the water heater complete a full heating cycle.

If it works, congratulations! If the problem persists or you run into complications, don't hesitate to call the professionals. Sometimes a successful DIY project is knowing when you need backup.

For major installations or when you want the peace of mind that comes with professional expertise, we're here to help. Learn more about our water heater installation services.

Frequently Asked Questions about Water Heater Pressure Switches

We get a lot of calls from homeowners with questions about these little but mighty components. Let's tackle the most common ones we hear:

Can I bypass a water heater pressure switch?

This is one question where we have to be absolutely firm: No, never, not even temporarily. We understand the temptation when you're facing another cold shower and thinking, "It's just a small part, what could go wrong?"

Here's what could go wrong: carbon monoxide poisoning. The water heater pressure switch isn't there to make your life difficult - it's literally a life-saving device. When you bypass it, you're telling your water heater to operate without confirming proper ventilation. That means deadly, odorless carbon monoxide gas could fill your home instead of being safely vented outside.

We've seen too many dangerous situations where someone thought they were being clever with a "temporary fix." There's nothing temporary about carbon monoxide exposure. If your pressure switch is acting up, it needs professional diagnosis and proper replacement with the correct OEM part. Your family's safety is worth more than the cost of doing it right.

Is a pressure switch the same as a pressure relief valve?

We get this mix-up all the time, and it's totally understandable since both have "pressure" in their names. But these two components are as different as a smoke detector and a fire extinguisher - both important for safety, but doing completely different jobs.

Your water heater pressure switch is all about air pressure and airflow. It's watching the venting system to make sure combustion gases are being properly expelled. Think of it as the gatekeeper that says, "Okay, the air is moving correctly, it's safe to light the burner."

The pressure relief valve (technically called a Temperature and Pressure Relief Valve or T&P valve) monitors water pressure and temperature inside your tank. If things get too hot or the pressure builds up too much, this valve opens to release water and steam, preventing your tank from turning into a very expensive (and dangerous) bomb.

So one watches the air, the other watches the water. Both are essential safety devices, but they're separate components with completely different functions, usually located in different spots on your water heater.

Why did my new pressure switch fail so quickly?

Oh, this one's frustrating! You just spent money on a new water heater pressure switch, and now it's acting up again? We feel your pain, and we see this scenario more often than you'd think.

Here's the thing: when a brand-new pressure switch fails quickly, it's usually not actually failing at all. Instead, it's doing exactly what it's supposed to do - detecting a problem somewhere else in your system. Think of it like replacing the batteries in a smoke detector that keeps beeping, only to find out there's actually smoke in the house.

The real culprits are often hiding elsewhere in your system. A partially blocked vent can create just enough airflow disruption to confuse the switch. Maybe there's a bird's nest you didn't spot, or leaves have accumulated in the flue pipe. Sometimes the draft inducer motor itself is starting to fail - it might sound like it's running fine, but it's not reaching full speed or maintaining consistent pressure.

Condensation problems are another sneaky issue we encounter frequently. Water droplets can build up in the pressure sensing hose or vent pipes, effectively blocking the airflow signal the switch needs to function properly.

In rare cases, the control board might be sending mixed signals or not providing proper voltage to the system components, making it seem like the pressure switch is the problem when it's actually just the messenger.

This is why we always recommend a full system check when a new part fails quickly. Simply replacing the switch again without addressing the root cause is like putting a bandage on a broken pipe - it's not going to solve the real problem. Our experienced technicians know how to track down these underlying issues to get your system running properly again. Learn more about our water heater repair services.

Conclusion: When to Call a Professional for Your Water Heater

Throughout this guide, we've explored how the water heater pressure switch serves as your home's silent guardian - a small but incredibly important safety device that ensures proper ventilation before your gas water heater can ignite. This tiny component prevents dangerous carbon monoxide buildup while keeping your family comfortable with reliable hot water.

We've walked you through recognizing the warning signs of a failing pressure switch, from water heaters that won't ignite to those frustrating blinking error codes. You've learned how to safely test the switch with a multimeter and even tackle a replacement if you're feeling handy. But here's the thing - knowing when to step back and call in the professionals is just as important as knowing how to DIY.

Working with gas and electricity isn't something to take lightly. Even experienced homeowners can run into unexpected complications. Maybe your multimeter readings don't make sense, or perhaps you've replaced the water heater pressure switch but you're still getting cold showers. Sometimes the pressure switch failure is actually a symptom of a bigger problem - like a failing draft inducer motor or a partially blocked vent that needs professional diagnosis.

If your replacement doesn't solve the problem, or if you feel uncertain about any step in the process, that's your cue to call for backup. There's no shame in recognizing when a job requires professional expertise. In fact, it's the smart move.

For residents in Pittsburg, CA, and throughout Contra Costa County, Stewart Heating, Plumbing & Air Conditioning brings decades of experience to your water heater challenges. We understand that hot water problems never happen at convenient times, and we're committed to providing safe, reliable diagnostics and repairs that get your system back up and running properly.

Our focus on quality workmanship and customer satisfaction means we don't just replace parts - we diagnose the root cause to prevent future problems. Much of our business comes from referrals because we believe in doing projects right the first time. When you're dealing with safety components like pressure switches, that attention to detail makes all the difference.

Don't let a faulty water heater pressure switch leave you in the cold any longer than necessary. Schedule your professional water heater repair in Concord, CA today and get back to enjoying the comfort and safety of reliable hot water.
