Don't Freeze! Easy Steps to Troubleshoot Your Heating System

Why Quick Heating System Troubleshooting Can Save You Money

Heating system troubleshooting means checking for simple causes before calling for expensive service. When your heater fails on a cold day, don't panic—many common issues can be resolved in minutes.

Here are the top 5 things to check first when your heating system isn't working:

1. Thermostat settings - Ensure it's set to "Heat" and the temperature is at least 3 degrees above the room's temperature.
2. Power supply - Check the furnace switch and circuit breakers.
3. Air filter - A clogged filter is a top cause of heating problems.
4. Vents and registers - Make sure they are open and unblocked.
5. Pilot light (gas furnaces) - Check if it's lit.

Research shows a dirty air filter can prevent your furnace from turning on and cause overheating. This simple fix can save you hundreds in service calls.

Most heating system failures happen during the coldest days. The good news? About 80% of "no heat" calls are due to simple issues homeowners can fix. Before spending money on emergency repairs, spend 10 minutes on these basic steps. You might solve the problem and keep your family warm without breaking the bank.

Your Guide to DIY Heating System Troubleshooting

When your heating system fails on the coldest day of the year, many problems have simple solutions you can handle yourself. Heating system troubleshooting doesn't have to be intimidating. These basic checks might get your heat back on without a service call.

Check Your Thermostat First

Your thermostat controls your heating system and is often the source of problems. Start with the simple checks. Make sure your thermostat is set to "Heat" mode, not "Cool" or "Off." Next, set the temperature at least three degrees higher than the current room temperature to signal your system to turn on.

If the screen is blank, dead batteries are the likely culprit. Replace them to see if it revives your thermostat. For smart thermostats, a blank screen could also indicate a power issue or loose wiring. Sometimes, smart thermostats develop glitches. Try resetting it by turning it off, cutting power at the breaker for a minute, and then turning everything back on.

Thermostat placement is also important. If it's in direct sunlight, near a lamp, or in a draft, it can get inaccurate temperature readings, leading to heating inconsistencies. If you have an old manual model, consider the benefits of a smart thermostat, which can save up to 10% on energy bills.

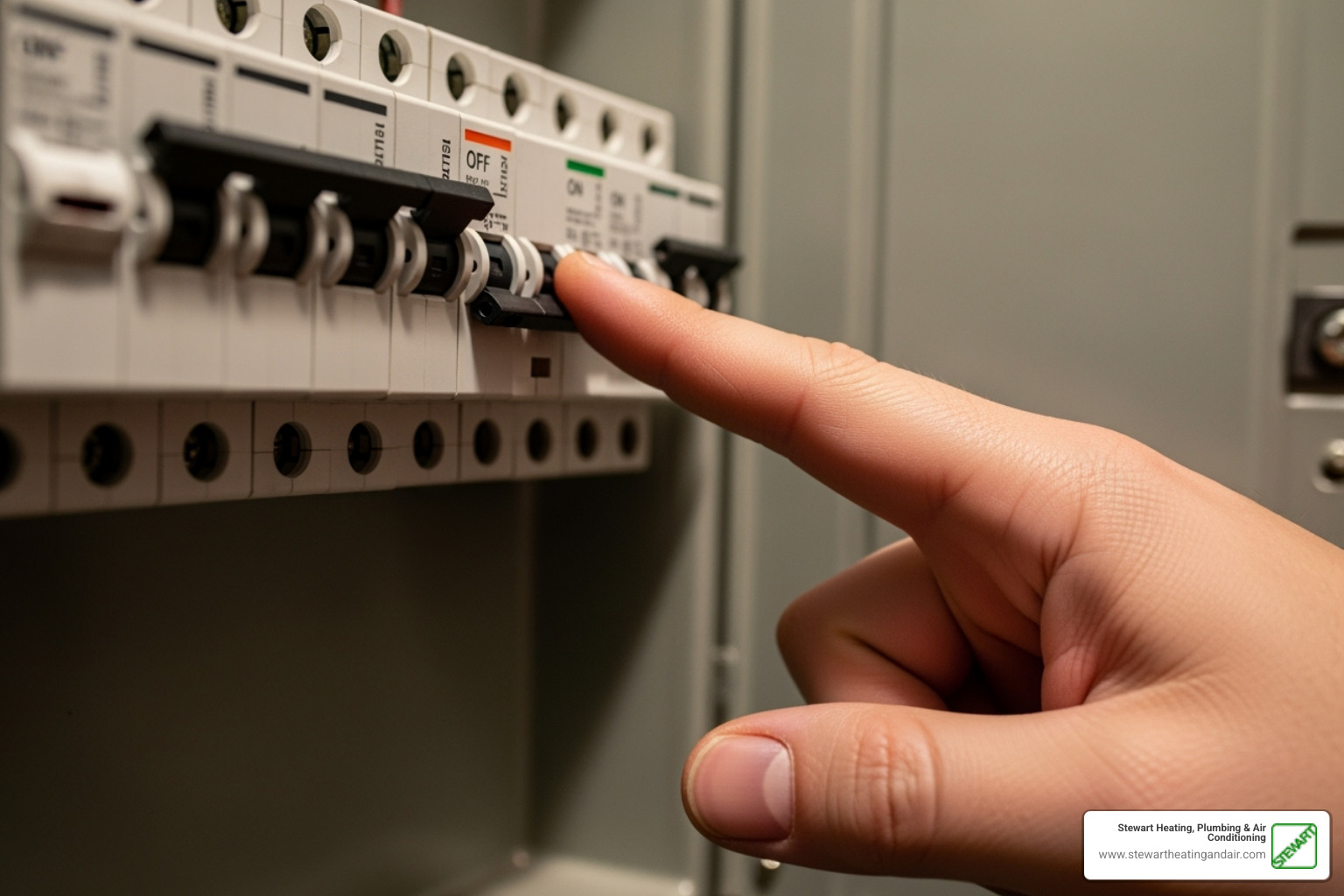

Basic Heating System Troubleshooting for Power Issues

No power means no heat. If your thermostat is fine but the system is off, check your electrical connections.

First, find your furnace switch. It looks like a light switch and is usually near the unit. It may have been accidentally flipped off. Next, check your home's circuit breaker panel for a tripped breaker labeled "Furnace" or "HVAC." To reset it, push it firmly to "Off" before flipping it back to "On." If it trips again, call a professional.

Older homes may have fuses. Look for blown fuses, which appear melted or have a broken filament, and replace them with identical ones. If fuses keep blowing, there's a deeper electrical problem. Also, ensure your furnace's safety switches on the access panels are engaged; the system won't run if the panels are not securely closed.

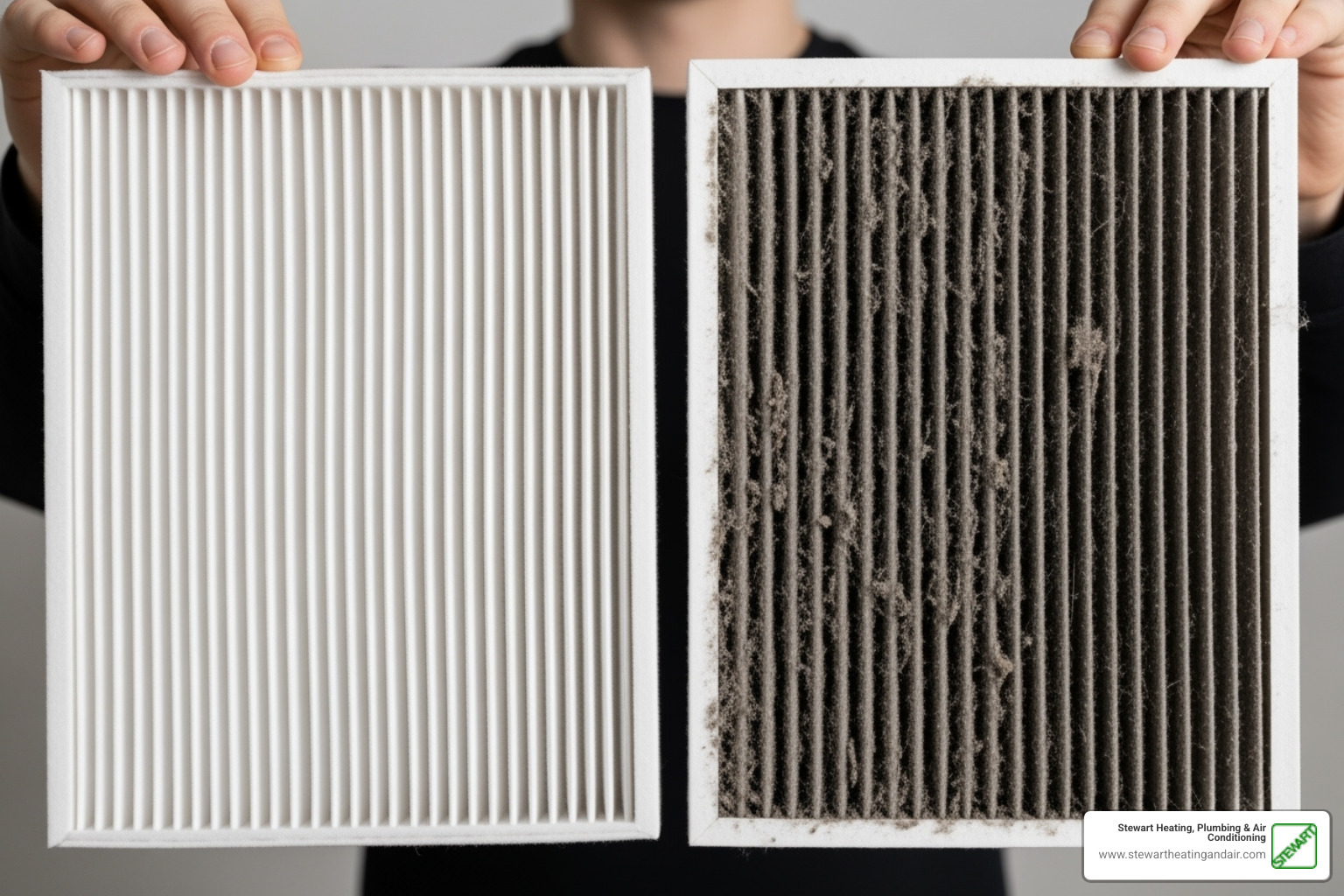

The Importance of a Clean Air Filter

A dirty air filter is the most common cause of heating problems. It restricts airflow, much like trying to breathe through a pillow.

A clogged air filter forces your furnace to work harder, leading to overheating, safety shutdowns, and short cycling (when the system turns on and off repeatedly). This strain also causes high energy bills.

Your air filter is usually in the return air duct or inside the furnace. Hold it up to a light; if you can't see light through it, it's time for a replacement. When replacing your filter, note the arrows indicating airflow direction—they should point toward the furnace. Check your filter monthly and replace it every 1-3 months to prevent most heating issues.

Common Heating Problems and How to Fix Them

Once you've covered the basics, you can investigate specific heating problems. We'll walk you through each issue step by step.

Why Is My Heater Blowing Cold Air?

If your system runs but blows cold air, check these common culprits.

Start with your thermostat's fan setting. If the fan is set to "ON" instead of "AUTO," it will blow air continuously, even when the furnace isn't heating. Switch it to "AUTO."

For gas furnaces, ensure the gas supply valve is open (parallel with the pipe). If it was accidentally turned, the furnace has no fuel. Pilot light issues in older gas systems can also prevent heat.

High-efficiency furnaces have a condensate line that can get clogged with debris, triggering a safety switch. You might see water pooling near the furnace. Minor clogs can sometimes be cleared with a wet/dry vacuum.

If you have a heat pump, low refrigerant levels can prevent it from heating your home. This requires professional service. Finally, leaky ductwork can let hot air escape into your attic or crawl space before it reaches you.

Advanced Heating System Troubleshooting: Noises and Smells

Unusual sounds and odors are clues that heating system troubleshooting is needed.

• Banging sounds often signal ignition problems where gas accumulates before lighting. This is a serious issue that needs immediate professional attention.
• Squealing or screeching noises typically point to a problem with the blower motor, like a worn fan belt or failing motor bearings.
• Rattling sounds are usually less serious. Check for loose access panels, debris in the blower compartment, or loose ductwork connections.

Your nose can also detect problems:

• A burning dust smell is normal when you first turn on the heat for the season and should fade quickly.
• A smell of burning plastic or electrical components is a serious issue. Turn off the system immediately and call for help, as it could be an overheating motor or faulty wiring.
• A gas or rotten egg smell is an emergency. Evacuate your home and follow the safety steps in our FAQ section.
• Moldy or musty odors suggest moisture problems, like mold growth in your ductwork or on system components.

Addressing Uneven Heating and Blockages

If some rooms are hot while others are cold, you're dealing with uneven heating.

Start by checking for blocked vents and closed registers. Ensure all vents are open and not obstructed by furniture or rugs.

Ductwork issues like leaks can steal up to 30% of your heated air. If you can access your ducts, look for gaps or disconnections. Small leaks can be sealed with mastic sealant or foil tape, but larger problems need a professional. Debris or obstructions inside ducts can also cause blockages and may require professional cleaning.

Water pooling near your heating unit is a red flag. For furnaces, it often indicates a clogged condensate drain line. A full condensation pan will also trigger a safety shut-off. Check the pan and empty it if needed. If it refills quickly, the drain line is likely clogged.

Pro tip: Avoid closing vents in unused rooms. This increases pressure in your duct system, which can cause leaks and damage your equipment.

Gas Furnace vs. Heat Pump: Key Troubleshooting Differences

Knowing your heating system type is key for effective heating system troubleshooting. Gas furnaces and heat pumps work differently and have unique problems. A gas furnace creates heat by burning fuel, while a heat pump moves heat from the outside air indoors.

How to Troubleshoot a Gas Furnace

Gas furnaces are reliable, but they have specific issues to check.

Troubleshooting often starts with pilot light issues. In older furnaces, this small flame ignites the main burners. If it's out, the furnace won't heat. Instructions for relighting are usually on the furnace panel. If you smell gas or are unsure, call a professional. Also, check your gas supply valve to ensure it's open (handle parallel to the pipe).

Modern furnaces use a flame sensor as a safety device. If it gets dirty, it can fail to detect the flame and shut the furnace down. Cleaning a flame sensor is a delicate task best left to professionals.

Pay attention to the furnace flame color. A healthy flame is mostly blue. If you see yellow or orange flames, it indicates a combustion problem that could produce carbon monoxide. Turn off your system and call for service immediately. If your carbon monoxide detector ever goes off, evacuate your home and call for emergency help. This could signal a cracked heat exchanger or blocked flue, which are life-threatening issues.

For more information, see a detailed guide to gas furnace problems.

How to Troubleshoot a Heat Pump

Heat pumps move heat rather than creating it, which leads to unique troubleshooting scenarios.

A common concern is a frozen outdoor unit. Some frost is normal in cold weather. Your heat pump has a defrost cycle to melt it, and you might see steam, which is normal. However, if the unit is encased in thick ice, it's a problem. This could be due to a faulty defrost cycle, restricted airflow, or low refrigerant. Turn the system off to thaw. If it freezes again, call a professional.

If your heat pump is blowing cold air in heat mode, it might be in its defrost cycle, which is normal. If it's constantly blowing cold air, you may have low refrigerant or a problem with the reversing valve, which directs the flow of refrigerant for heating and cooling. A stuck valve requires professional repair.

Heat pumps use auxiliary or emergency heat (usually electric coils) when temperatures drop below 25-30°F. This uses more electricity, so higher bills during cold snaps are expected. Ensure your thermostat is set to allow auxiliary heat when needed.

Expand your knowledge with more on heat pump diagnosis. The key to heating system troubleshooting is knowing what's normal for your specific system.

Frequently Asked Questions about Heating System Issues

We often get the same questions from homeowners trying heating system troubleshooting. Here are answers to the most common concerns.

Why is my heating system turning on and off so quickly?

This is called short cycling. It's inefficient and puts wear on your system. Here are common causes:

• Clogged air filter: Restricted airflow causes the system to overheat and shut down for safety. This is the most common cause.
• Oversized system: A furnace that's too powerful for your home will heat the space too quickly and shut off before completing a proper cycle.
• Thermostat placement: If your thermostat is in a draft, near a heat source, or in direct sunlight, it will get inaccurate readings and cycle the system incorrectly.
• Restricted airflow: Besides the filter, blocked vents, closed registers, or leaky ducts can also cause overheating and short cycling.
• Faulty flame sensor (gas furnaces): A dirty or malfunctioning sensor may not detect the flame, causing the furnace to shut down shortly after igniting.

What should I do if I smell gas?

A gas smell is an emergency. The rotten egg odor is added to natural gas to alert you to leaks. Act quickly and safely.

1. Evacuate immediately. Get everyone, including pets, out of the house.
2. Do not use electronics. Don't touch light switches, phones, or anything that could create a spark.
3. Call for help from a safe distance. Once you are away from the house, call your gas company's emergency line and 911.
4. Shut off the gas (only if you can do so safely). If you know where your main gas shut-off valve is and can access it without risk, turn it off.
5. Do not re-enter your home until emergency personnel declare it safe. A professional inspection is required before using your heating system again.

What causes high energy bills in the winter?

High winter utility bills can be frustrating. Besides cold weather, several fixable issues could be the cause:

• Dirty air filters: A clogged filter makes your system work harder and use more energy.
• Leaky ductwork: Up to 30% of heated air can escape through duct leaks, wasting money and energy.
• Old, inefficient system: Furnaces over 15-20 years old or heat pumps over 10-15 years old are much less efficient than modern units.
• Poor insulation: Inadequate insulation in your attic, walls, or around windows lets heat escape, forcing your system to run constantly.
• Incorrect thermostat programming: Setting the temperature too high or not using setbacks when you're away or asleep wastes energy.
• Skipping regular maintenance: A neglected system runs less efficiently and works harder, increasing operating costs.

When to Call a Professional and The Value of Maintenance

We encourage homeowners to try heating system troubleshooting, but it's crucial to know when to call in professionals.

Safety is always the top priority. If you smell gas, see sparks, or your carbon monoxide detector goes off, evacuate and call for emergency help immediately. These are not DIY situations.

Call us when the basics don't work. If you've checked the thermostat, filter, and breakers, but the problem persists, it's time for professional diagnosis. Issues like constantly tripping breakers, loud grinding or banging noises, or a heat pump blowing cold air require specialized tools and expertise. Attempting complex repairs can lead to more expensive damage.

If your system needs frequent repairs, it might be nearing the end of its life. We can help you decide if another repair is cost-effective or if replacement makes more sense. If you're ever uncomfortable with a troubleshooting step, especially involving gas or electricity, please call for help.

The secret to avoiding most emergency calls is regular maintenance. An annual tune-up is like an oil change for your car—it's essential for performance and longevity.

• Prevents major breakdowns: We catch small problems before they become big, expensive ones.
• Saves you money: A well-maintained system runs more efficiently, lowering energy bills and extending its lifespan.
• Keeps your family safe: Our technicians check for gas leaks, carbon monoxide risks, and electrical hazards.

At Stewart Heating, Plumbing & Air Conditioning, we've built our reputation in Pittsburg, CA, and Contra Costa County by doing things right the first time. Our high referral rate comes from treating every customer like family.

Don't let a heating problem leave you in the cold. If you've tried these troubleshooting steps and still need help, it's time to bring in the experts. You can easily schedule Emergency Furnace Repair with us, and we'll get your home warm and comfortable again.
